Good timing-CKP & CMP signal-Renault-Trafic 2014-

Vehicle: Renault Trafic 2014-
Engine code: R9M 1.6d R4 DOHC ?
Mileage: 190000 km / 117800 miles

Good timing

Engine control system

Camshaft and crankshaft correlation
CKP & CMP signal
Operation mode: idling

Author's comment:
Эталон синхронизации для R9M

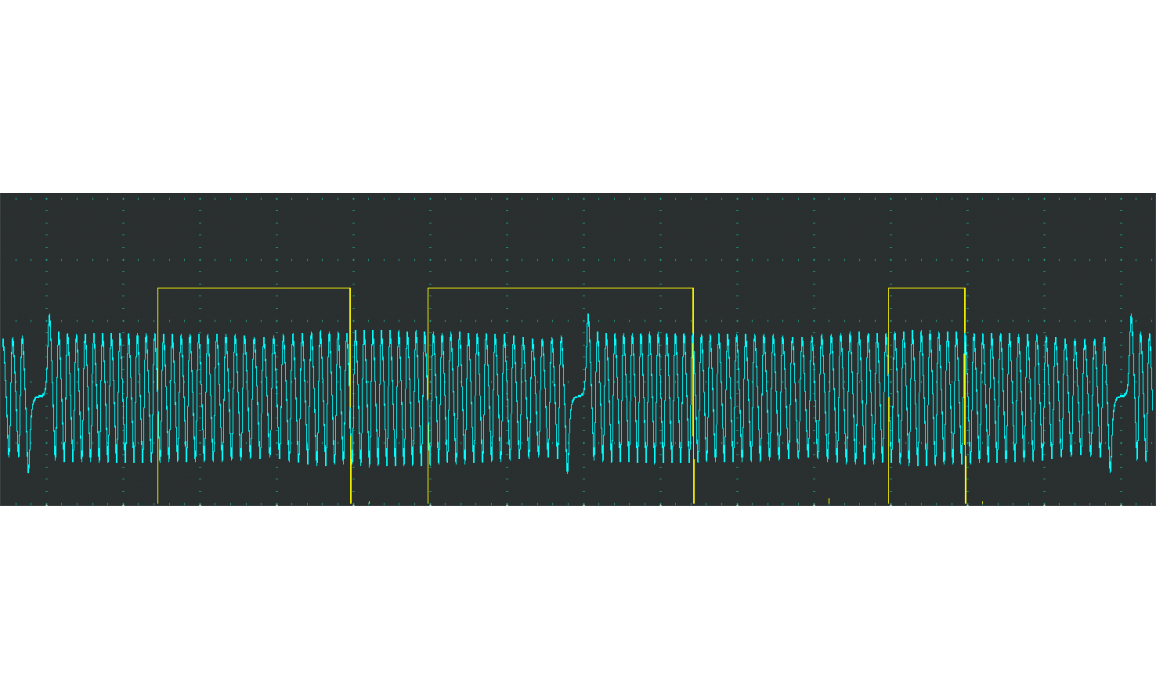

Signal Waveform:
Autoscope(514.19KB)

Author: BigNode (9)
Signal was added: 9-apr-2026
