Good timing-CKP & CMP signal-Renault-Logan II 2012-

Vehicle: Renault Logan II 2012-
Engine code: B4D400 12V 1.0L

Good timing

Engine control system

Camshaft and crankshaft correlation
CKP & CMP signal
Operation mode: idling

Author's comment:
manufactured 10 2019
Vehicle_type L8JC
Vehicle_fabrication_number AB56357
engine B4D400
engineNo R111219

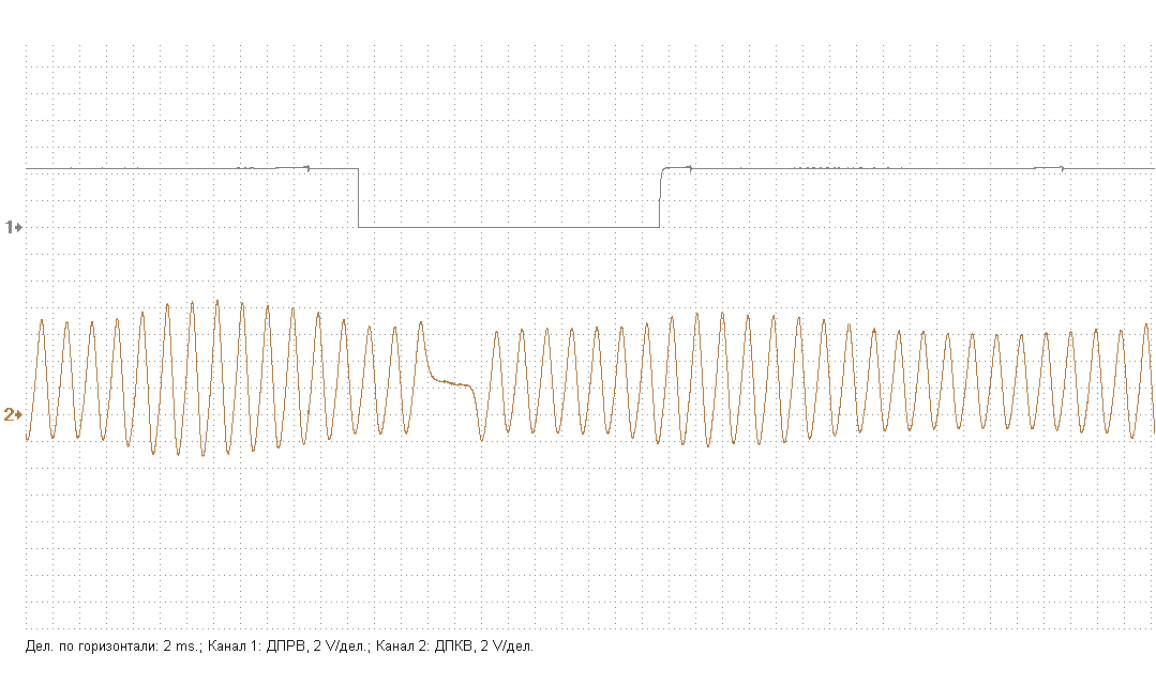

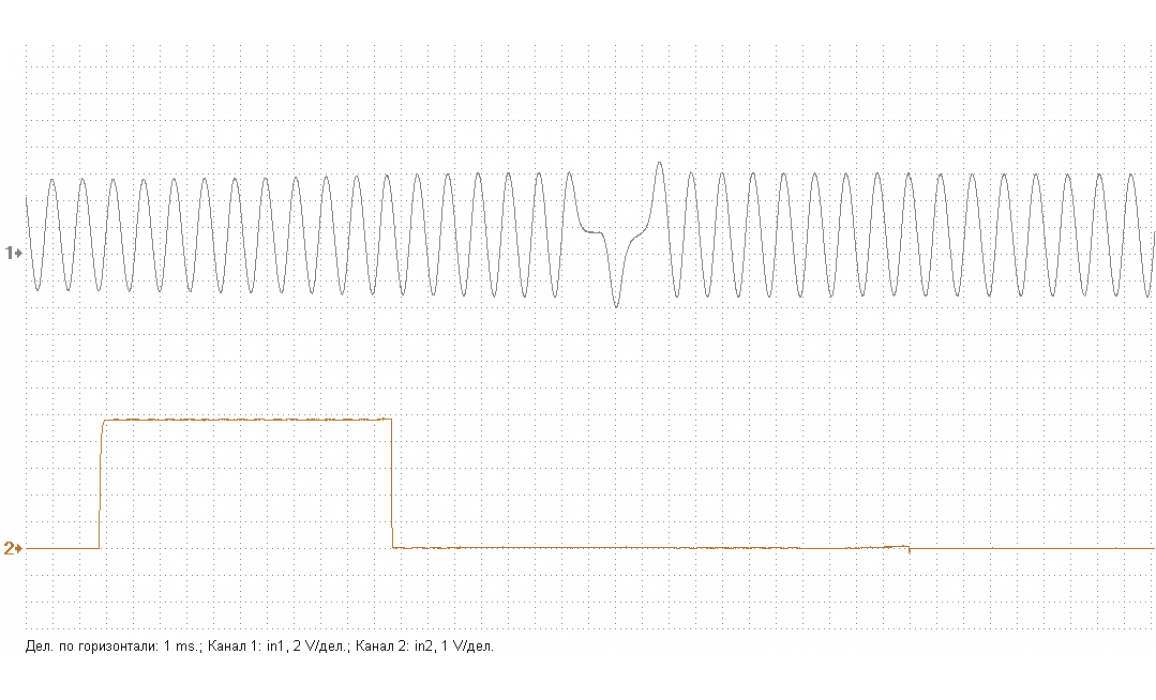

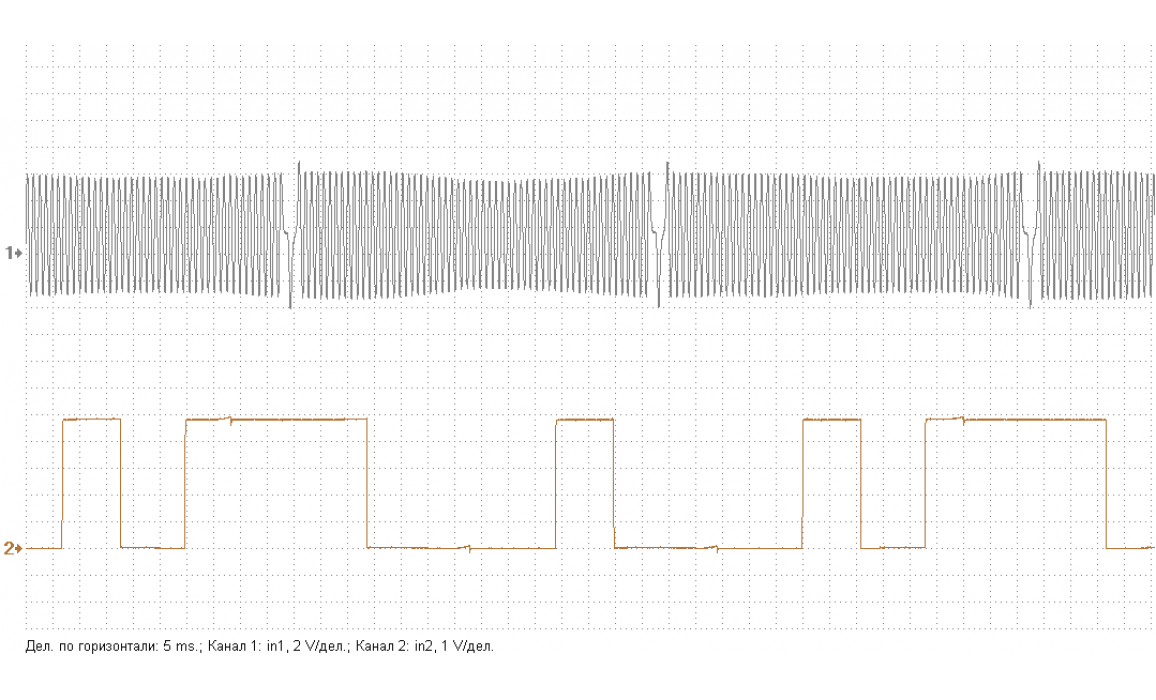

Signal Waveform:
Autoscope(5.47MB)

Author: Eugene (916)
Signal was added: 10-jul-2023
