Vehicle: Audi A6 (C5) 1997-2004
Engine code: BBJ V6 30V 3.0L ?

Good timing

Engine control system

Camshaft and crankshaft correlation

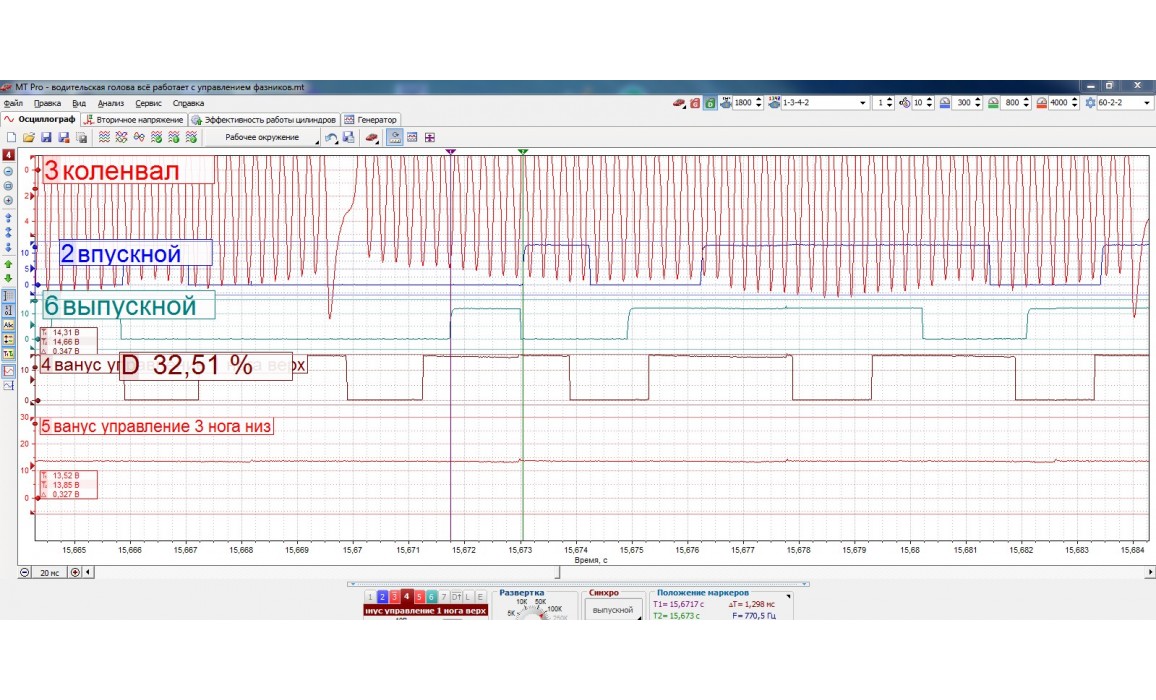

CKP & CMP signal
Operation mode: idling and kickdown

Author: Petyanya
Signal posted: Eugene (885)
Signal was added: 9-apr-2021
