Good timing-CKP & CMP signal-Audi-A4 (B6) 2000–2006

Vehicle: Audi A4 (B6) 2000–2006
Engine code: BFB 20V 1.8T
Mileage: 340000 km / 210800 miles

Good timing

Engine control system

Camshaft and crankshaft correlation
CKP & CMP signal
Operation mode: idling

Author's comment:
все метки совпадают, 16 роликов с права на лево, ремень стоит точно

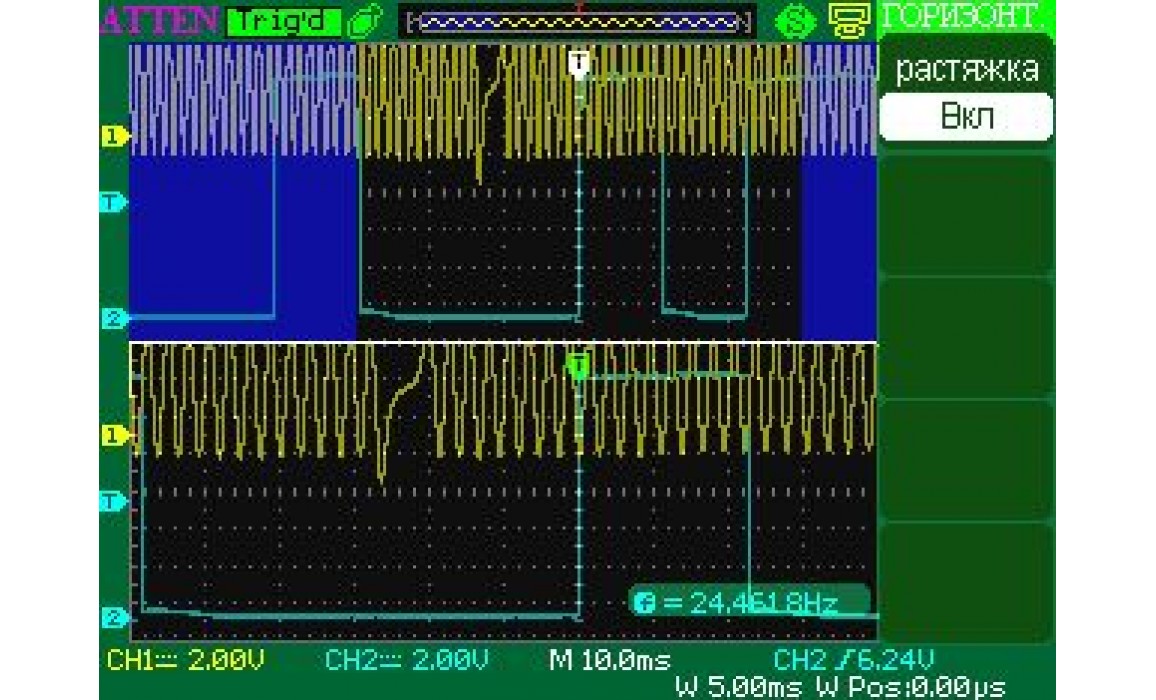

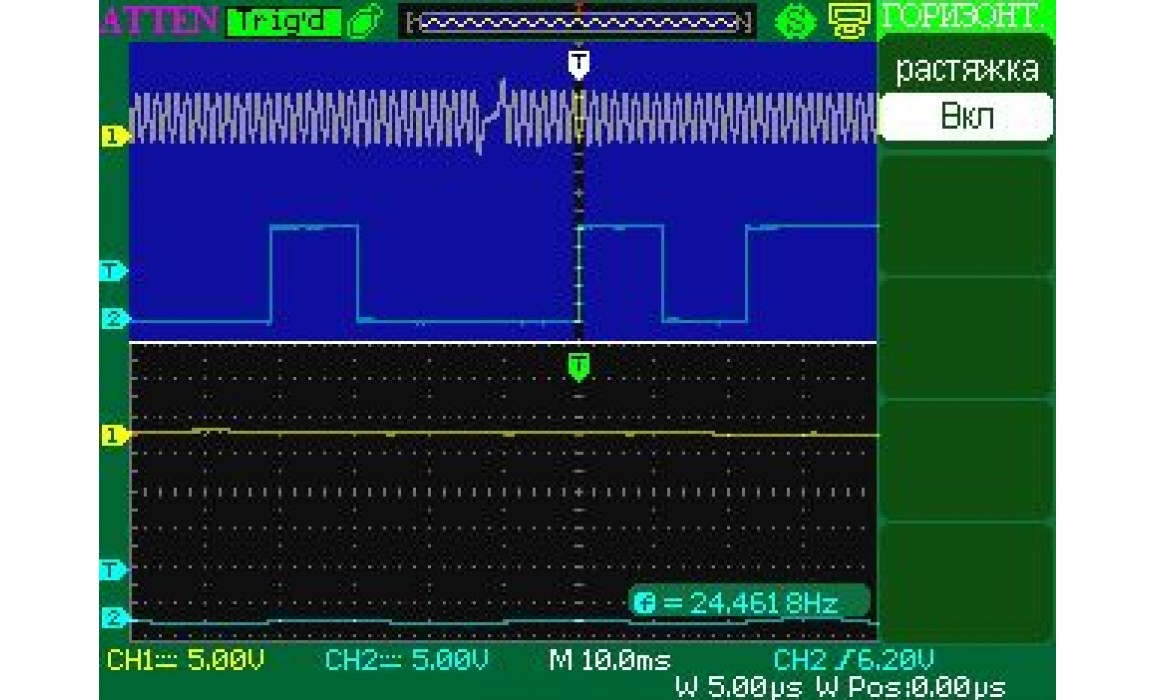

Signal Waveform:
ATTEN(96.67KB)

Author: vitaminn (1)
Signal was added: 13-may-2026
