Авто: Audi A4 (B8) 2007-2015
Код двигателя: CAE 2.0TFSI
Опережение распредвалов
Система управления двигателем
Синхронизация ГРМ
Сигнал ДПКВ + ДПРВ
Режим работы: холостой ход

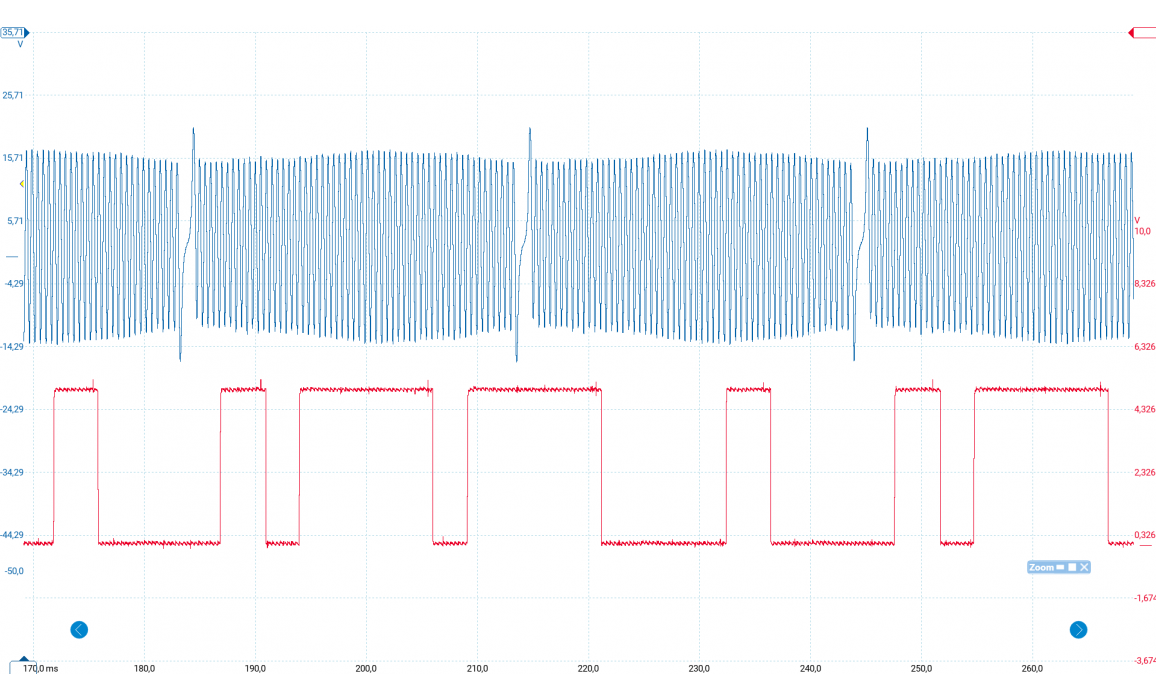

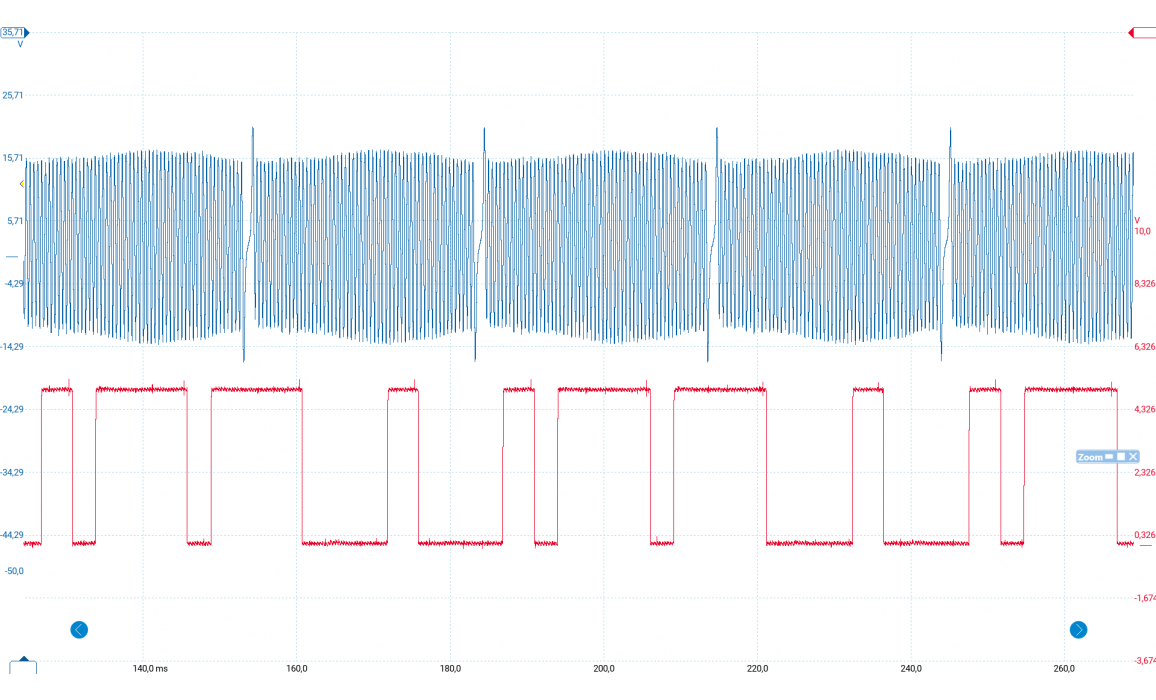

CAE engine. Came in with a cam correlation fault and wouldn't pass basic settings without clearing the fault code first. This scope pattern is recorded while running the IDE00749-Test oc camshaft adjustment intake. You can see the camshaft signal advance while test is actuated. Test passed after clearing the p0016 fault code. Capture 1-4 shows the difference.
Автор: RotkeeTeam (29)
Сигнал добавлен: 9-июл-2024
